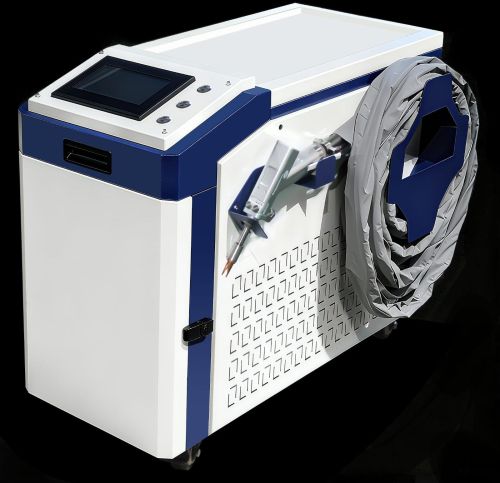

Hand Held Laser Welding Machine

Hand Held Laser Welding Machine

Product Details

Laser power 1000W/1500W
Laser incidence Coaxial
Laser Wavelength 1080
Collimated focal length 50mm
Focusing focal length 100mm
Operating Voltage AC220V 50Hz
Cross Power ≤5000W
Gas Source 0.2Mpa(Argon,Nitrogen)
Cooling Style Water cooling
Handle Aluminum hand-held, light and easy to master
Weave length 1080nm±5
Power stability ±1.5%
Laser repetition frequency 50-50,000Hz
Beam quality ㎡≤1.3
Red light indicates output power 0.1-1mW
Fuber Core Diameter 25
Output cable length 10m
Operating Mode Continuously
Interface Type QBH
Download View

Preferred Buyer From

Location India ( Delhi)

Laser welding a high efficient precision welding method which is in the use of high energy density laser beam as a heat source . Laser welding is one of the important aspects of laser processing technology. Laser radiates and heats the workpiece surface, The surface heat diffuses to the inside through heat conduction, Then the laser makes the workpiece melting and form the specific welding pool by controlling the laser pulse width,energy, peak power and repetition frequency. Due to its unique advantages, it has been successfully applied to the precise welding for micro parts and small parts. Laser welding is fusing welding technology, laser welder puts laser beam as the energy source, and make it impact on the weldment joints to realize welding .
